Portable generator
| 汽油/天然气/液化气发电机组 | 单相/三相 | Gasoline LPG NG Gas generator set | 1P/3P | ||||||||
| 230/400V 功率范围：5kVA -26kVA | 50/60Hz | 230/ 400V | Power range:5kVA -26kVA | 50/60Hz | ||||||||
| Model | XC6500SEDR | XC9000SEDR | XC10000SEDR | XC13000SEDR | XC14000SEDR | XC20000SEDR | XC20000SED | XC25000SEDR | XC32000SEDR |

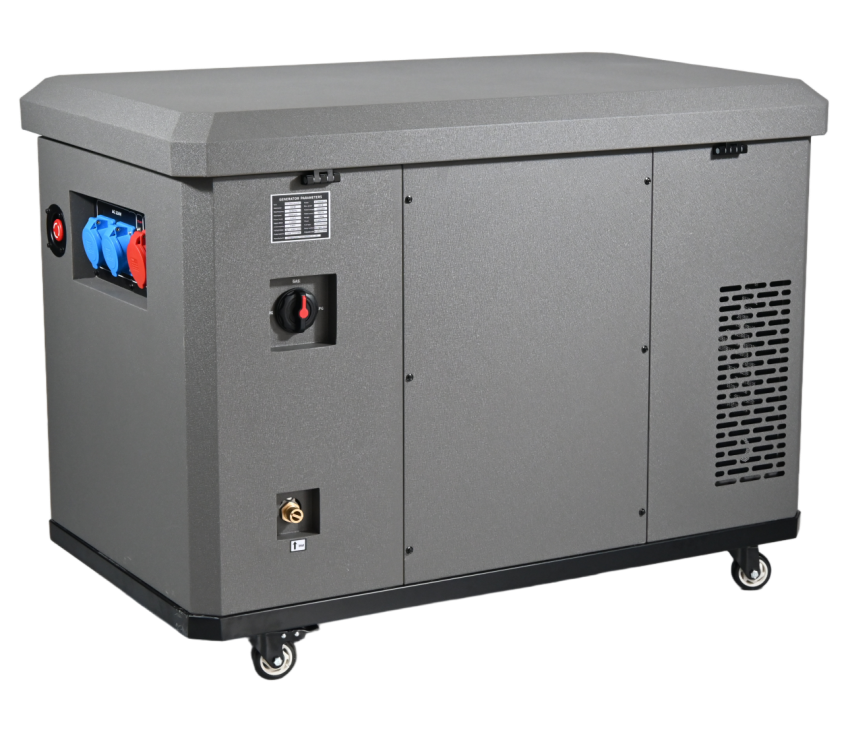

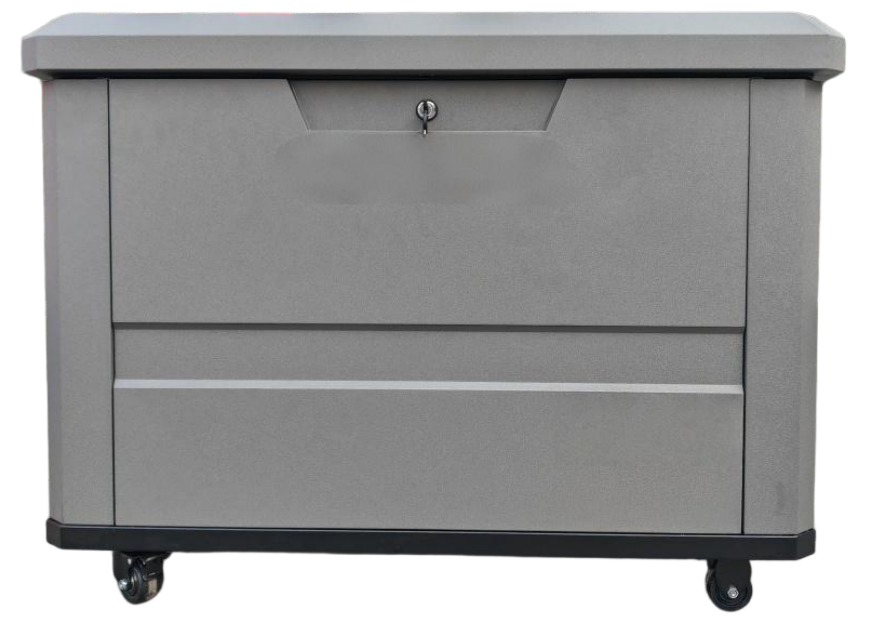

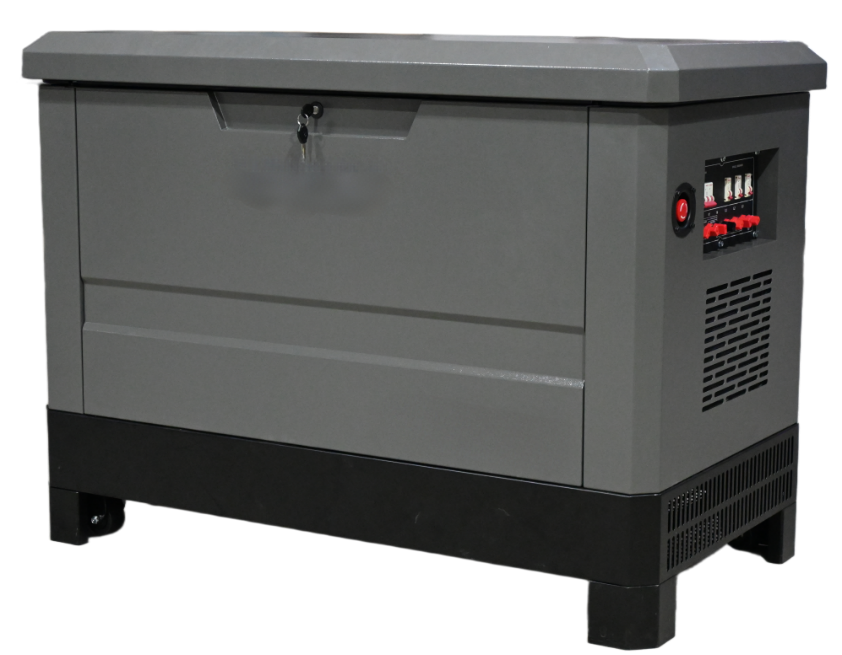

| Reference picture |  | | |  | | |  | | |
| Start Method | Electric | Electric | Electric | Electric | Electric | Electric | Electic | Electric | Electric |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Voltage (V) | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 |
| Rated Power(kw) | Gasoline 5 LPG 4.7 NG 4.2 | Gasoline 7 LPG 6.5 NG 6 | Gasoline 8 LPG 7.5 NG 6.8 | Gasoline 10 LPG 9.5 NG 8.5 | Gasoline 12 LPG 11.5 NG 10 | Gasoline 15 LPG 14 NG 12.5 | Gasoline 15 LPG 14 NG 12.5 | Gasoline 21 LPG 20 NG 18 | Gasoline 25 LPG 23.5 NG 21 |
| Max Power(kw) | Gasoline 5.5 LPG 5 NG 4.7 | Gasoline 8 LPG 7.5 NG 6.5 | Gasoline 9 LPG 8.5 NG 7.5 | Gasoline 11 LPG 10.5 NG 9.5 | Gasoline 13 LPG 12.3 NG 11 | Gasoline 16 LPG 15 NG 13.5 | Gasoline 16 LPG 15 NG 13.5 | Gasoline 22 LPG 21 NG 19 | Gasoline 26 LPG 25 NG 22 |
| Curent(A) | Gasoline 21/9 LPG 20/8.5 NG 18/7.5 | Gasoline 30/12.5 LPG 28/11.5 NG 26/11 | Gasoline 34/14 LPG 33/13 NG 29/12 | Gasoline 43/18 LPG 41/17 NG 37/15 | Gasoline 52/21 LPG 49/20 NG 44/18 | Gasoline 65/27 LPG 62/26 NG 55/23 | Gasoline 65/27 LPG 62/26 NG 55/23 | Gasoline 91/38 LPG 87/36 NG 78/32 | Gasoline 108/45 LPG 103/43 NG 92/38 |
| Phase | Single/Three | Single/Three | Single/Three | Single/Three | Single/Three | Single/Three | Single/Three | Single/Three | Single/Three |
| Power Factor | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 | 1.0/0.8 |
| GAS consumption(m²/h) | 2 | 2 | 2 | 3 | 3.5 | 4.5 | 4.5 | 6.2 | 7.3 |
| Fuel consumption(g/kW.h) | ≤410 | ≤420 | ≤420 | ≤374 | ≤374 | ≤374 | ≤254 | ≤254 | ≤254 |
| Running Time at 50%Load(h) | 20h | 14h | 12.5h | 9h | 8.5h | 12h | 9.5h | 7h | 5h |
| Fuel | Gasoline LPG NG (LNG CNG在NG状态基础上需要单独在机箱外增加多级压阀)可迭单燃料、双燃料、三燃料 | Gasoline/LPG/NG(自然吸气) Gasoline/CNG/LNG(电喷) | |||||||
| Fuel Tank Capacity(L) | 30 | 30 | 30 | 40 | 40.0 | 40 | 40 | 40 | 40 |
| Oil Tank Capacity(L) | 1 | 1 | 1 | 2 | 1.8 | 1.8 | 2.8 | 2.8 | 3 |
| Noise dB(A)7m | ≤75 | ≤75 | ≤75 | ≤72 | ≤72 | ≤72 | ≤72 | ≤72 | ≤72 |
| Insulation Grade | F | F | F | F | F | F | F | F | F |
| Engine Model | 192FD | 196FD | 196FD | 760 | 999.0 | 999 | CG12 Electric injection | CG14 Electric injection | CG14 Electric injection |
| Engine Type | Single cylinder,Air-cooled,4 stroke | V-twin cylinder,Air-cooled,4 stroke | Four cylinder4-stroke water-cooled | ||||||
| Displacement(cc) | 457 | 550 | 550 | 760 | 999.0 | 999 | 1298 | 1499 | 1499 |
| Packing Size(mm) | 1050*720*830 | 1050*720*830 | 1050*720*830 | 1360*840*1000 | 1360*840*1000 | 1360*840*1000 | 1540*890*1080 | 1540*890*1080 | 1540*890*1080 |
| Gross Weight(Kg) | 154 | 158 | 165 | 295 | 310.0 | 332 | 400 | 430 | 457 |
| Support customization / OEM processing | |||||||||
